LUEN-Ft-20
LUEN
8612000
| Material: | Please select |
|---|---|
| Axle Number: | Please select |
| Quantity: | |

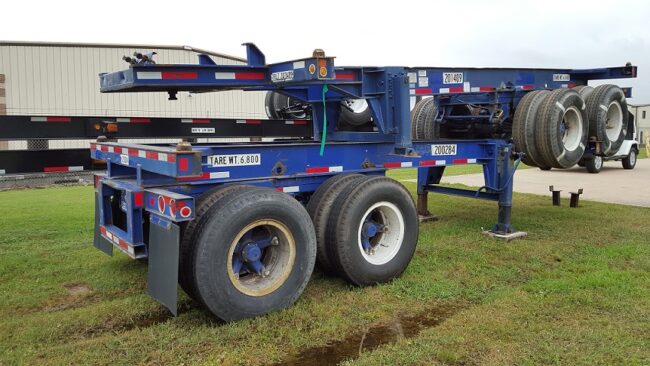

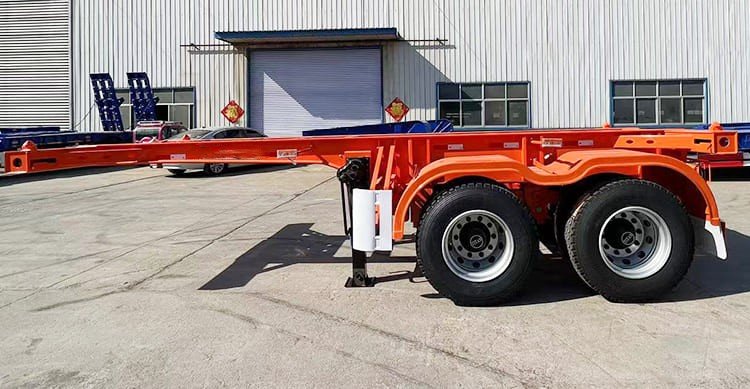

20Ft container chassis is generally used in ports, ships, roads, routes, bridges, tunnels, transfer stations,supporting multimodal transport logistics systems.For a 20Ft container, we can provide 4-8 sets of container twist locks
| Brand | LUEN |
| Maximum load | 45T |
| Length*Width *Height(mm) | 13000*2550*1350 |
| Axle | LH 13T American Type Axle *2 |
| Suspension | LH 13T*3 Three-axis Mechanical Suspension |
| Leaf Spring | thickness*width-number of pieces: 13mm*90mm-10 |
| King Pin | 2"/3.5"welding /assembly |
| Landing Gear | 28T linkage /single action |
| Tire /Rim | 12.00R22.5*12 |
| Stringer(beam) | Thickness of upper wing:12mm |
| Web thickness:8mm | |
| Thickness of lower wing:14mm | |
| Height:450mm | |
| Bottom Plate | 4mm patterned board /smooth board |
| The above specifications are optional,and Fuwa/PBW axles can be configured. | |
New trailer trucks, we provide a 1-year warranty, and there are local sinotruk agent service points that can provide on-site service; for trailers, we provide a 6-month warranty for the driving and supporting devices, and a 1-year warranty for the carrying device.
LUEN is a foreign trader of trailer trucks with a 15-year production history. We have our own factory and many product patents. Our products are sold well in Africa, the Middle East, and South America. We support customization and build trailer trucks that are unique to customers. We also provide a one-year warranty. What are you waiting for? Come and contact us.
20Ft container chassis is generally used in ports, ships, roads, routes, bridges, tunnels, transfer stations,supporting multimodal transport logistics systems.For a 20Ft container, we can provide 4-8 sets of container twist locks
| Brand | LUEN |
| Maximum load | 45T |
| Length*Width *Height(mm) | 13000*2550*1350 |
| Axle | LH 13T American Type Axle *2 |
| Suspension | LH 13T*3 Three-axis Mechanical Suspension |
| Leaf Spring | thickness*width-number of pieces: 13mm*90mm-10 |
| King Pin | 2"/3.5"welding /assembly |
| Landing Gear | 28T linkage /single action |
| Tire /Rim | 12.00R22.5*12 |
| Stringer(beam) | Thickness of upper wing:12mm |
| Web thickness:8mm | |
| Thickness of lower wing:14mm | |
| Height:450mm | |
| Bottom Plate | 4mm patterned board /smooth board |
| The above specifications are optional,and Fuwa/PBW axles can be configured. | |
New trailer trucks, we provide a 1-year warranty, and there are local sinotruk agent service points that can provide on-site service; for trailers, we provide a 6-month warranty for the driving and supporting devices, and a 1-year warranty for the carrying device.
LUEN is a foreign trader of trailer trucks with a 15-year production history. We have our own factory and many product patents. Our products are sold well in Africa, the Middle East, and South America. We support customization and build trailer trucks that are unique to customers. We also provide a one-year warranty. What are you waiting for? Come and contact us.
+86 17686798823
