LUEN-FT-50T
LUEN
8716100000
7-25 days
| Material: | Please select |
|---|---|
| Axle Number: | Please select |
| Tire Number: | Please select |
| Main Beam: | Please select |
| Quantity: | |

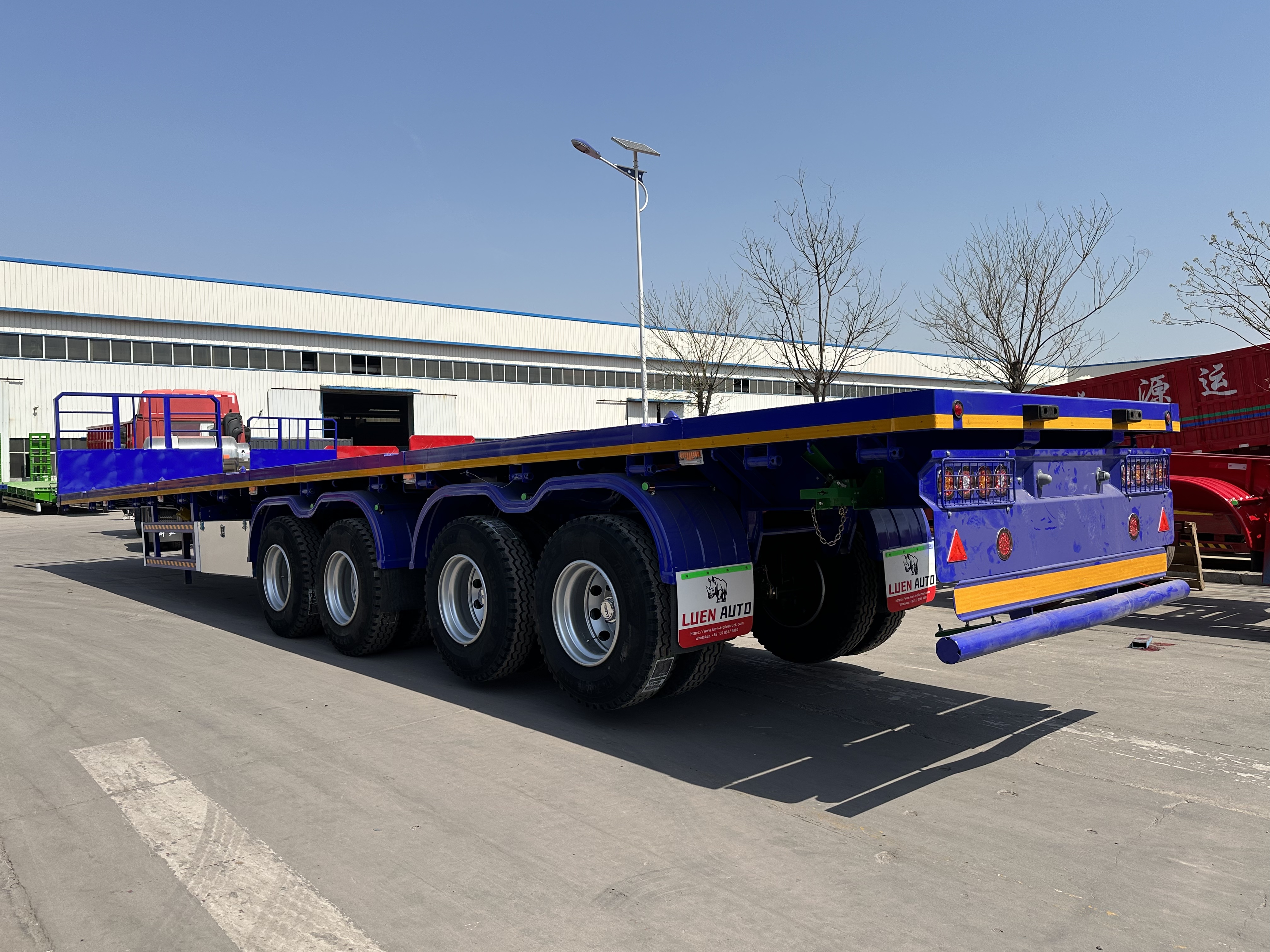

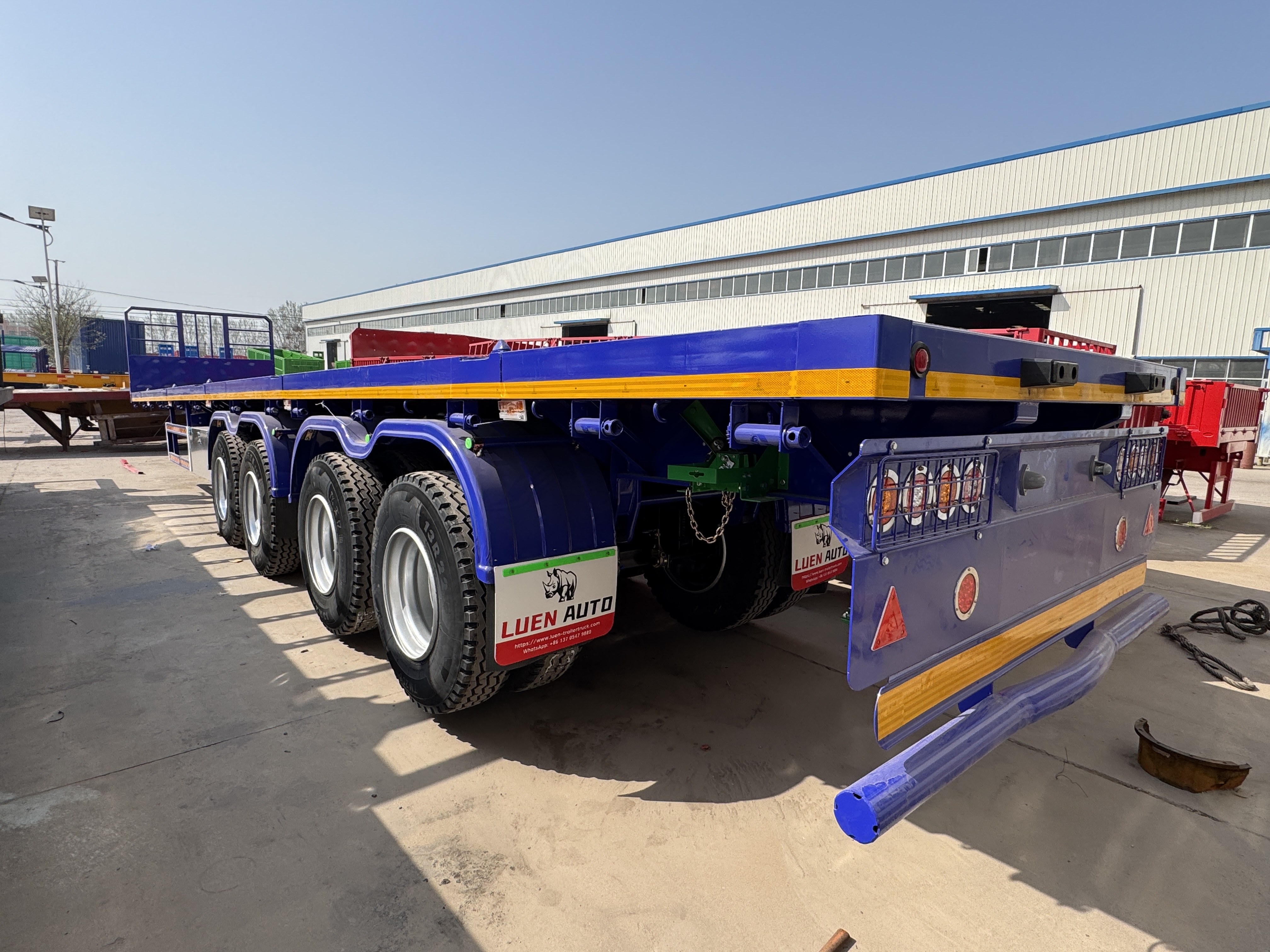

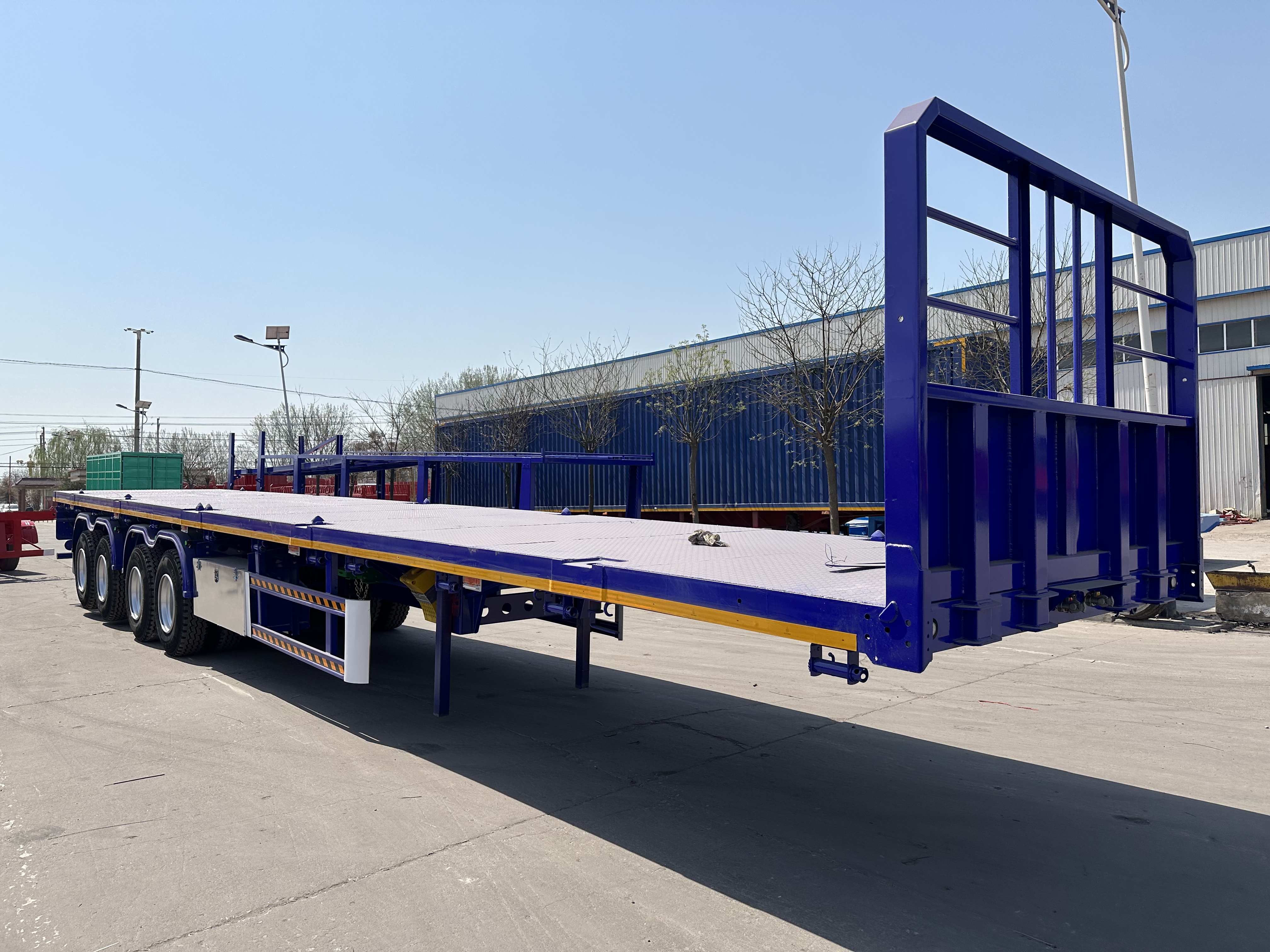

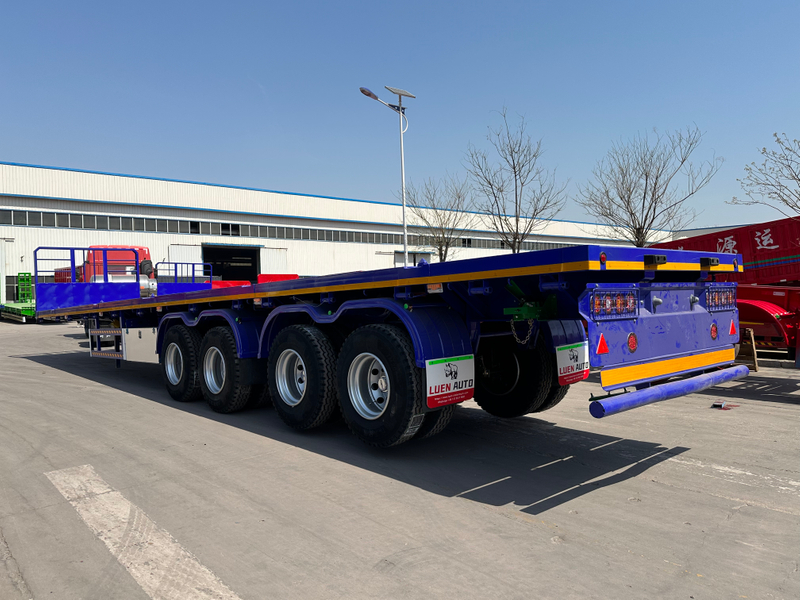

Looking for a 3 Axle Flatbed Semi Trailer with Headboard? Our flatbed car trailer is designed for superior strength, versatility, and reliability, offering an ideal solution for transporting heavy and oversized cargo. Featuring a sturdy headboard for added protection and stability, this trailer is perfect for industries like freight, logistics, construction, and more. Built to handle tough loads, our flatbed semi-trailer ensures smooth and secure hauling, no matter the conditions.
3 axle flatbed car semi trailer with headboard dimensions
| Brand | LUEN |
| Maximum load | 45T |
| Length * Width *Height(mm) | 13000*2550*1350 |
| Axle | LH 13T American Type Axle *3 |
| Suspension | LH 13T*3 Three-axis Mechanical Suspension |
| Leaf Spring | thickness * width-number of pieces:13mm* 90mm-10 |
| King Pin | 2"/3.5”welding / assembly |
| Landing Gear | 28T linkage 1 single action |
| Tire /Rim | 12.00R22.5 *12 |
| Stringer(工-beam) | Thickness of upper wing: 12mm |
| Web thickness: 8mm | |
| Thickness of lower wing: 14mm | |
| Height:450mm | |
| Bottom Plate | 4mm patterned board / smooth board |
| The above specifications are optional, and Fuwa/PBW axles can be configured. | |
drawing flatbed car trailer with headboard
Heavy-Duty Load Capacity: With a load capacity of up to 45 tons, the 3 Axle Flatbed Semi Trailer with Headboard is designed to carry the heaviest cargo safely and efficiently, making it ideal for heavy-duty applications.
Headboard for Protection: Equipped with a strong headboard, this trailer ensures additional security for your cargo, preventing items from shifting or falling off the front during transport. It also adds structural integrity to the overall design.
Robust Construction: Made from high-quality steel, this flatbed trailer offers exceptional durability and resistance to wear, corrosion, and fatigue, ensuring long-term use in harsh environments.
Customizable Length: Available in customizable lengths (12m to 14m), allowing you to select the ideal size for your specific cargo and transportation requirements.
Customizable Brake & Suspension Options: Choose between drum and disc brakes, and select either air suspension or leaf spring suspension to meet your operational needs, ensuring smooth, stable rides.
Anti-Corrosion Finish: Designed with an anti-corrosion coating, the trailer is protected against the elements, ensuring it performs optimally and lasts longer, even in harsh weather conditions.
Freight & Logistics: Perfect for transporting large and heavy loads, including oversized freight, and is an excellent choice for logistics companies requiring a reliable trailer for long-haul operations.
Construction: Ideal for hauling construction materials, machinery, and equipment to and from job sites, providing a secure and stable platform for transporting large, bulky items.
Heavy Equipment Hauling: Excellent for transporting heavy equipment, such as cranes, loaders, and excavators, thanks to its heavy-duty capacity and headboard protection.
Automobile Transport: Ideal for use as a flatbed car trailer, capable of securely transporting vehicles with ease, whether for retail, export, or other automotive needs.
Superior Load Handling: With a high load capacity of up to 45 tons, this trailer is designed to handle large, heavy cargo, providing the strength and reliability you need for demanding transport tasks.
Enhanced Cargo Protection: The headboard is designed to provide additional security for your cargo, protecting it from potential damage during transport and ensuring safe delivery.
Long-Term Durability: Built with high-quality steel and finished with an anti-corrosion coating, this trailer is made to last, offering superior durability and resistance to wear and tear.
Customizable Features: The customizable length, suspension, and brake options give you the flexibility to tailor this trailer to your specific needs, ensuring it suits a wide range of transportation requirements.
Improved Safety: The 3-axle configuration provides added stability, while the headboard helps prevent shifting, improving the safety and security of your load.
Enhance your fleet's performance and safety with our 3 Axle Flatbed Semi Trailer with Headboard. Whether you're transporting heavy machinery, construction materials, or vehicles, this trailer is built to handle the toughest jobs while keeping your cargo secure.
Come and contact us today for pricing, availability, or to place an order, or visit our website to secure the best flatbed car trailer for your business!
Looking for a 3 Axle Flatbed Semi Trailer with Headboard? Our flatbed car trailer is designed for superior strength, versatility, and reliability, offering an ideal solution for transporting heavy and oversized cargo. Featuring a sturdy headboard for added protection and stability, this trailer is perfect for industries like freight, logistics, construction, and more. Built to handle tough loads, our flatbed semi-trailer ensures smooth and secure hauling, no matter the conditions.
3 axle flatbed car semi trailer with headboard dimensions
| Brand | LUEN |
| Maximum load | 45T |
| Length * Width *Height(mm) | 13000*2550*1350 |
| Axle | LH 13T American Type Axle *3 |
| Suspension | LH 13T*3 Three-axis Mechanical Suspension |
| Leaf Spring | thickness * width-number of pieces:13mm* 90mm-10 |
| King Pin | 2"/3.5”welding / assembly |
| Landing Gear | 28T linkage 1 single action |
| Tire /Rim | 12.00R22.5 *12 |
| Stringer(工-beam) | Thickness of upper wing: 12mm |
| Web thickness: 8mm | |
| Thickness of lower wing: 14mm | |
| Height:450mm | |
| Bottom Plate | 4mm patterned board / smooth board |
| The above specifications are optional, and Fuwa/PBW axles can be configured. | |
drawing flatbed car trailer with headboard
Heavy-Duty Load Capacity: With a load capacity of up to 45 tons, the 3 Axle Flatbed Semi Trailer with Headboard is designed to carry the heaviest cargo safely and efficiently, making it ideal for heavy-duty applications.
Headboard for Protection: Equipped with a strong headboard, this trailer ensures additional security for your cargo, preventing items from shifting or falling off the front during transport. It also adds structural integrity to the overall design.
Robust Construction: Made from high-quality steel, this flatbed trailer offers exceptional durability and resistance to wear, corrosion, and fatigue, ensuring long-term use in harsh environments.
Customizable Length: Available in customizable lengths (12m to 14m), allowing you to select the ideal size for your specific cargo and transportation requirements.
Customizable Brake & Suspension Options: Choose between drum and disc brakes, and select either air suspension or leaf spring suspension to meet your operational needs, ensuring smooth, stable rides.
Anti-Corrosion Finish: Designed with an anti-corrosion coating, the trailer is protected against the elements, ensuring it performs optimally and lasts longer, even in harsh weather conditions.
Freight & Logistics: Perfect for transporting large and heavy loads, including oversized freight, and is an excellent choice for logistics companies requiring a reliable trailer for long-haul operations.
Construction: Ideal for hauling construction materials, machinery, and equipment to and from job sites, providing a secure and stable platform for transporting large, bulky items.
Heavy Equipment Hauling: Excellent for transporting heavy equipment, such as cranes, loaders, and excavators, thanks to its heavy-duty capacity and headboard protection.
Automobile Transport: Ideal for use as a flatbed car trailer, capable of securely transporting vehicles with ease, whether for retail, export, or other automotive needs.
Superior Load Handling: With a high load capacity of up to 45 tons, this trailer is designed to handle large, heavy cargo, providing the strength and reliability you need for demanding transport tasks.
Enhanced Cargo Protection: The headboard is designed to provide additional security for your cargo, protecting it from potential damage during transport and ensuring safe delivery.
Long-Term Durability: Built with high-quality steel and finished with an anti-corrosion coating, this trailer is made to last, offering superior durability and resistance to wear and tear.
Customizable Features: The customizable length, suspension, and brake options give you the flexibility to tailor this trailer to your specific needs, ensuring it suits a wide range of transportation requirements.
Improved Safety: The 3-axle configuration provides added stability, while the headboard helps prevent shifting, improving the safety and security of your load.
Enhance your fleet's performance and safety with our 3 Axle Flatbed Semi Trailer with Headboard. Whether you're transporting heavy machinery, construction materials, or vehicles, this trailer is built to handle the toughest jobs while keeping your cargo secure.
Come and contact us today for pricing, availability, or to place an order, or visit our website to secure the best flatbed car trailer for your business!
