A CNG semi trailer is a specialized semi-trailer designed to transport Compressed Natural Gas (CNG) safely and efficiently. It carries high-pressure gas (usually 20–25 MPa, about 200–250 bar) in long tubes or cylinders mounted on a strong trailer frame.
A CNG semi trailer is commonly used when:
Building a new gas pipeline is too expensive or too slow
You need to supply CNG to remote areas, industrial parks, or new cities
You want a flexible and mobile gas supply for power plants, factories, or gas stations

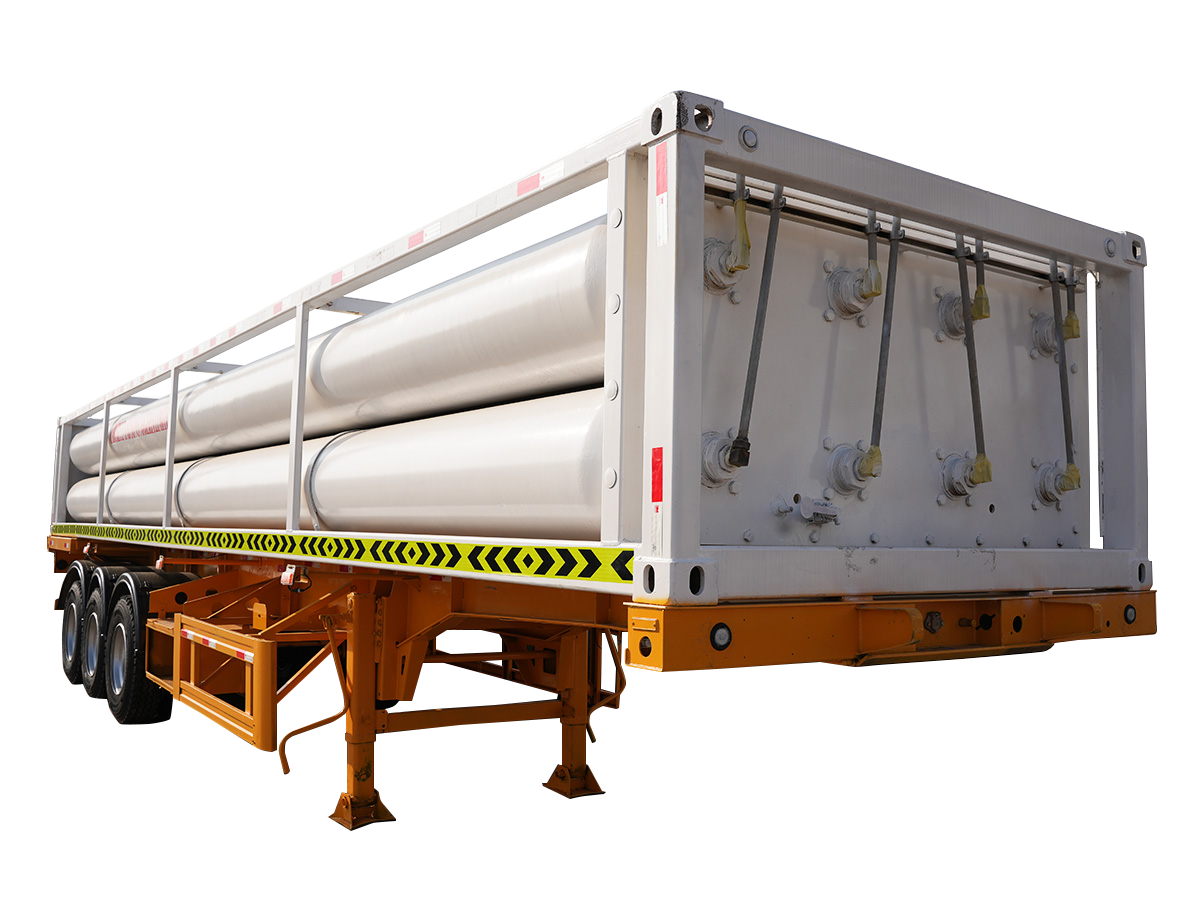

This is the most common type:
Long high-pressure tubes (typically 6–12 tubes) mounted on a trailer frame
Working pressure: 20–25 MPa (200–250 bar)
Used for large-volume CNG transport between compression stations and distribution centers
Common sizes:
20 ft and 40 ft trailer lengths
Tube diameters like 559 mm, 660 mm, or 750 mm
Total gas capacity from about 13,000 m³ up to more than 9,000 m³ (depending on design)
A CNG container semi trailer looks like a standard container:
High-pressure cylinders arranged inside a container frame
Can be handled with standard container equipment
Used for mobile gas stations or temporary supply projects
This type is more flexible for:
Smaller or medium gas supply projects
Sites where space is limited
Quick setup and removal
Some CNG semi trailers are designed to carry not only CNG but also:
Hydrogen (H₂)
Nitrogen (N₂)
Helium (He)
Other industrial gases
These trailers are built with multi-purpose high-pressure tubes and safety systems.
The core of a CNG semi trailer is its high-pressure storage system:
Seamless steel tubes or carbon fiber-wrapped cylinders
Working pressure: 20 MPa or 25 MPa (200–250 bar)
Designed and tested according to ASME, ISO, DOT, or other standards
These tubes or cylinders are:
Very strong and durable
Tested for high pressure and safety
Corrosion-resistant for long service life
A CNG semi trailer must handle:
Heavy loads (tubes plus gas weight)
Long-distance transport on highways and industrial roads
Dynamic forces during braking, turning, and rough roads
Typical features:
Multi-axle designs (2–3 axles, sometimes more)
Mechanical leaf spring or air suspension
Reinforced frame and cross members
At a CNG filling station or compression plant:
Connect the CNG semi trailer to the filling line via high-pressure hoses.
Compress gas into the tubes or cylinders.
Monitor pressure until the target level (e.g., 20–25 MPa) is reached.
Close valves and prepare for transport.
The loaded CNG semi trailer is:
Hauled by a tractor to the destination (factory, power plant, gas station, etc.).
Monitored during transport for pressure and leaks.
Driven according to hazardous materials transport regulations.
At the destination:
Connect the trailer to the customer’s gas system or storage.
Release gas from the tubes into pipelines or storage tanks.
Reduce pressure using regulators if needed.
After emptying, return the trailer for refilling.
Some CNG semi trailers can also act as mobile gas stations, supplying CNG directly to vehicles.
A CNG semi trailer allows gas to be delivered to:
Remote areas without pipelines
Temporary projects (construction, mining, events)
New industrial zones during pipeline construction
This flexibility is a major advantage over fixed pipeline systems.
Building a new pipeline is expensive and time-consuming. For small or remote projects, a CNG semi trailer system can be:
Faster to set up
More cost-effective
Easily scaled up or down as demand changes
CNG is a cleaner fuel compared to coal or diesel. Using CNG:
Reduces air pollution
Helps meet environmental standards
Supports energy transition goals
CNG semi trailers play an important role in this transition by enabling wider use of natural gas.
When looking for a CNG semi trailer, consider:
Check:
Total gas volume (in m³ or Nm³)
Number and size of tubes (e.g., 8 tubes Ф559, 10 tubes Ф660)
Working pressure (20 MPa, 25 MPa)
Match these to your daily or monthly gas demand.
Choose:
2 or 3 axles depending on load weight and road conditions
Suitable suspension type (spring or air)
Frame strength and design for your routes
Ensure the trailer:
Meets local and international standards (ASME, ISO, DOT, etc.)
Has all required safety devices (relief valves, shut-off valves, gauges)
Comes with proper documentation and test certificates
A good supplier should offer:
Custom design options
Professional installation and training
Maintenance support and spare parts
Warranty and long-term service
LUEN designs and builds high-quality CNG semi trailers that meet strict safety and performance standards. Our CNG trailers:
Use high-strength seamless steel tubes rated for 20–25 MPa.
Feature reliable manifold and valve systems from trusted brands.
Are built with strong frames, 2–3 axle designs, and advanced suspension.
Include multiple safety devices and full testing certificates (ASME, ISO, DOT, etc.).
Offer flexible configurations for 6–12 tubes and different capacities.
Whether you need a standard CNG tube semi trailer, a container-style CNG carrier, or a custom solution for a specific project, LUEN can help you design the right CNG semi trailer for your needs.
