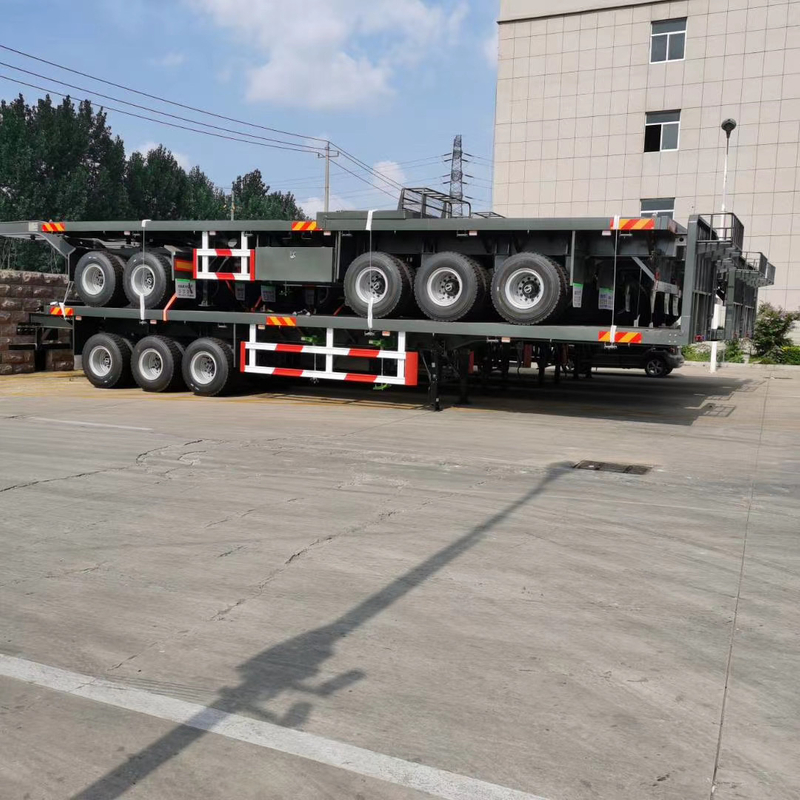

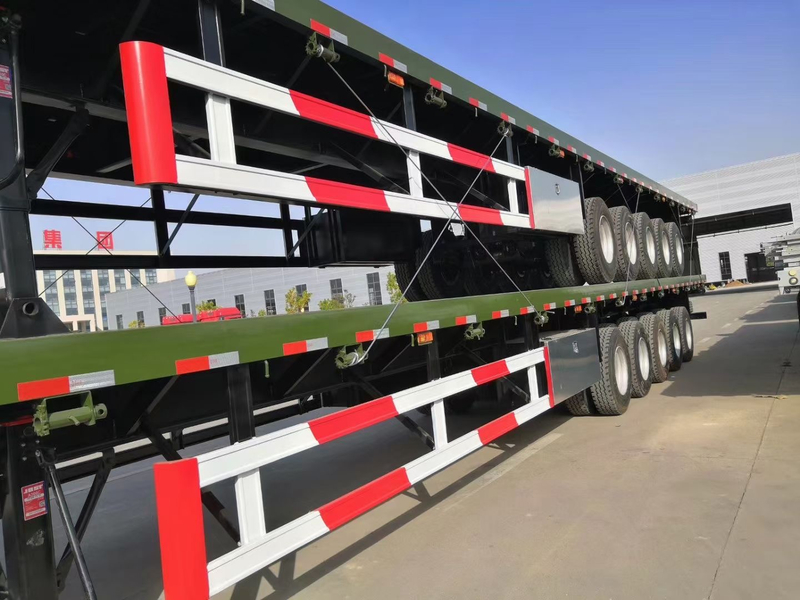

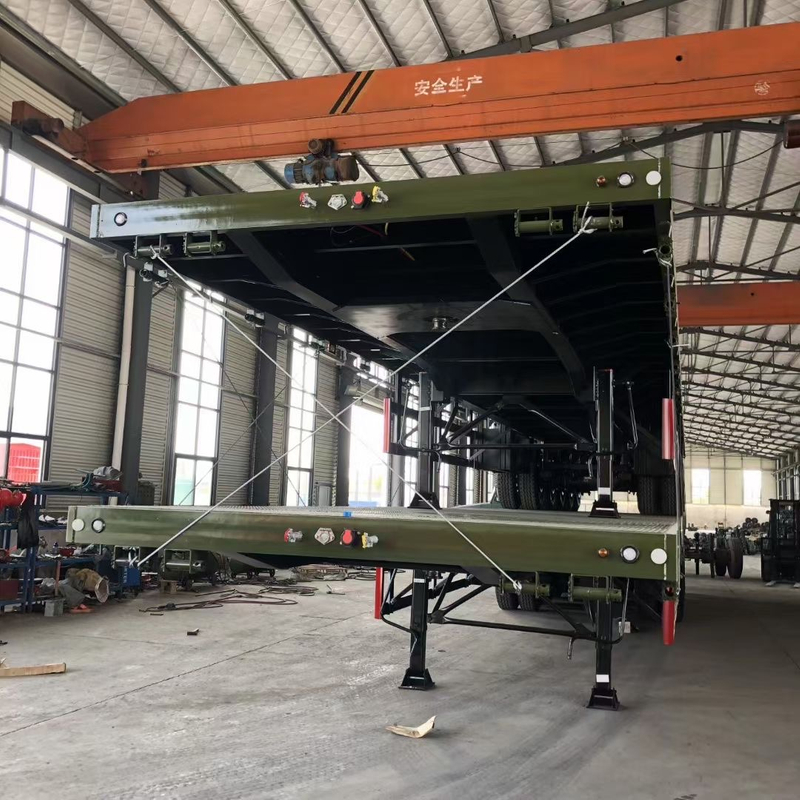

Custom 2axle Wide Steel Flatbed Semi Trailer
Container Flatbed Semi Trailer, 40ft is the most popular model. It is designed for carrying 40ft container, 20ft container and other dry bulk cargo. In general, the flatbed trailer suit for carrying loads 40 ton~60 tons weight .
| Brand | LUEN |
| Maximum load | 45T |
| Length * Width *Height(mm) | 13000*2550*1350 |
| Axle | LH 13T American Type Axle *3 |
| Suspension | LH 13T*3 Three-axis Mechanical Suspension |
| Leaf Spring | thickness * width-number of pieces:13mm* 90mm-10 |
| King Pin | 2"/3.5”welding / assembly |
| Landing Gear | 28T linkage 1 single action |
| Tire /Rim | 12.00R22.5 *12 |
| Stringer(工-beam) | Thickness of upper wing: 12mm |
| Web thickness: 8mm | |
| Thickness of lower wing: 14mm | |
| Height:450mm | |
| Bottom Plate | 4mm patterned board / smooth board |
| The above specifications are optional, and Fuwa/PBW axles can be configured. | |
Electrophoresis primer and powder spray coating, the surface is smooth and flat, ensuring uniform color in the later stage, without rust.
during transportation .The whole semi-trailer is strong and beautiful
Custom 2axle Wide Steel Flatbed Semi Trailer
Container Flatbed Semi Trailer, 40ft is the most popular model. It is designed for carrying 40ft container, 20ft container and other dry bulk cargo. In general, the flatbed trailer suit for carrying loads 40 ton~60 tons weight .
| Brand | LUEN |
| Maximum load | 45T |
| Length * Width *Height(mm) | 13000*2550*1350 |
| Axle | LH 13T American Type Axle *3 |
| Suspension | LH 13T*3 Three-axis Mechanical Suspension |
| Leaf Spring | thickness * width-number of pieces:13mm* 90mm-10 |
| King Pin | 2"/3.5”welding / assembly |
| Landing Gear | 28T linkage 1 single action |
| Tire /Rim | 12.00R22.5 *12 |
| Stringer(工-beam) | Thickness of upper wing: 12mm |
| Web thickness: 8mm | |
| Thickness of lower wing: 14mm | |
| Height:450mm | |
| Bottom Plate | 4mm patterned board / smooth board |
| The above specifications are optional, and Fuwa/PBW axles can be configured. | |
Electrophoresis primer and powder spray coating, the surface is smooth and flat, ensuring uniform color in the later stage, without rust.
during transportation .The whole semi-trailer is strong and beautiful
