Motor Hydraulic Construction Engineering Vehicle

Small concrete mixer truck. At present, the mixer truck is an indispensable professional transportation tool for urban construction roads, bridges, houses, water conservancy projects, and mixing stations. The small concrete mixer truck has the characteristics of narrow body, short wheelbase, small turning radius and other personalized designs, and has strong advantages in working environments with limited height, width and length. The concrete mixing and transportation tank produced by our company can rely on the power of the dump truck to drive the gear oil pump and the hydraulic motor to drive the tank car to run. The hydraulic components are controlled by the control lever, which can realize the normal and fast operation of the tank car, fast feeding, fast unloading and slow unloading. material. Thanks to the oil circuit cooler, the oil temperature is always kept below 55°C to ensure the stable operation of the hydraulic motor.
  • Sinutruck Howo 6X4

  • Sinutruck Howo

  • 8716100000

Driving type:
Please select
Engine:
Please select
Material:
Please select
Tire Number:
Please select
Axle Number:
Please select
Availability:
Quantity:

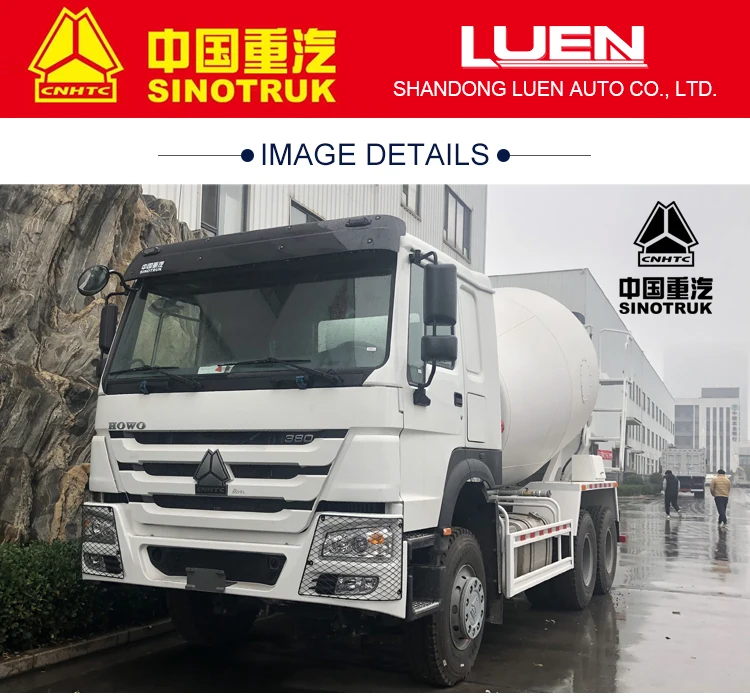

China Supplier Sinotruk Howo 9 Cubic 9m3 12CBM 4x4 concrete mixer with lift sand mixer for Sale

Concrete mixer trucks are special trucks used to transport concrete for construction; such trucks are equipped with cylindrical mixing drums to carry the mixed concrete. During transportation, the mixing drum is kept rotating to ensure that the concrete carried does not solidify. After the concrete is transported, the inside of the mixing drum is usually washed with water to prevent the hardened concrete from taking up space and making the volume of the mixing drum less and less.
Mixing tank conveying capacity(m3)
3
4
6
8
Geometric capacity of mixing drum(m3)
4.8
6.2
8.96
13.87
Filling ratio
0.67
0.67
0.67
0.67
Feeding speed(m3/min)
≥3
≥3
≥3
≥3
Discharge speed(m3/min)
≥1
≥1
≥1
≥1
Residual rate of discharge
≤1.0%
≤1.0%
≤1.0%
≤1.0%
Mixing drum speed(r/min)
0-14
0-14
5-12
0-14
Inlet height(m)
3.1
3.1
2.59
3.8
Height of discharge port(m)
1
1
1
1
Axis inclination
16°±0.5°
16°±0.5°
16°±0.5°
16°±0.5°
Dimensions(m)
3.8×1.95×2.1
4.0×1.95×2.1
5.7×2.2×2.59
5.8×2.5×2.9
Normal working temperature of fuel tank
50°-70°
50°-70°
50°-70°
50°-70°
Slump
12 or more
12 or more
12 or more
12 or more
